Comes with inserts!
Comes with everything you need to use it right away.
-Greatly increased speed with 12 blades.Has little cutting resistance or jumping, even with small jobs.
-You can externally chamfer bars or pipes, and keep costs low because insetrs can be used on the back too.
-With the optional guide plate, you can handle all kinds of additional work.
■Main unit
| Model no. |
V2 |
| Power |
100V(200W) |
| Number of revolutions |
3,000/3,600r.p.m. 50/60Hz |
| Dimentions |
W300×D280×H300mm |
| Weight |
26kg |
| Guide plate |
V2L-300 |
| Inserts |
S32GQZ NK2020(12) |
■Compatible inserts
| Material being cut |
Recommended insert model no. |
| Regular steel |
S32GQZ NK2001 |
| Alloy steel |
S32GQZ NK2001 |
| Stainless steel |
S32GQZ NK6060 |
| Aluminum, resin, brass |
S32GQZ NK2020 |
| Cast iron |
S32GQZ NK2001 |
■Guide plate
| Model no. |
A |
B |
C |
D |
E |
Possible work thickness |
Maximum C face |
Ultra-hard chrome coating |
| V2L-300 |
300 |
1 |
75 |
65 |
12 |
3mm or more |
MAX2C |
○ |

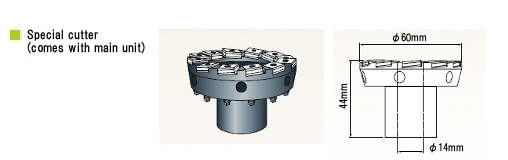

■Special cutter (comes with main unit)

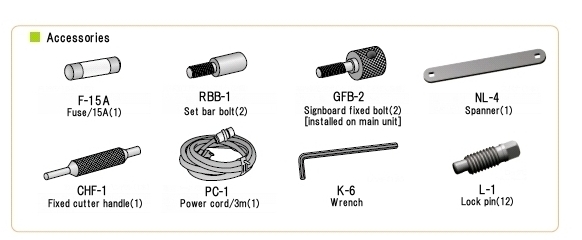

■Accessories
| Model no. |
|
| K-6 |
Wrench(1) |
| F-15A(1) |
Fuse/15A |
| RBB-1 |
Set bar bolt(2) |
| GFB-2 |
Signboard fixed bolt(2)[installed on main unit] |
| NL-4 |
Spanner(1) |
| L-1 |
Lock pin(12) |
| CHF-1 |
Fixed cutter handle(1) |
| PC-1 |
Power cord/3m(1) |
■Insert details
|
| Model no. |
Material |
Edge shape |
Coating |
Number of corners used |
Number per case |
| S32GQZ NK2001 |
Cermet |
Honing edge |
None |
16 |
12 |
| S32GQZ NK2020 |
Ultra-hard M20 type |
Honing edge |
None |
16 |
12 |
| S32GQZ NK6060 |
Ultra-hard M20 type |
Honing edge |
TiAlN |
16 |
12 |
|
|
